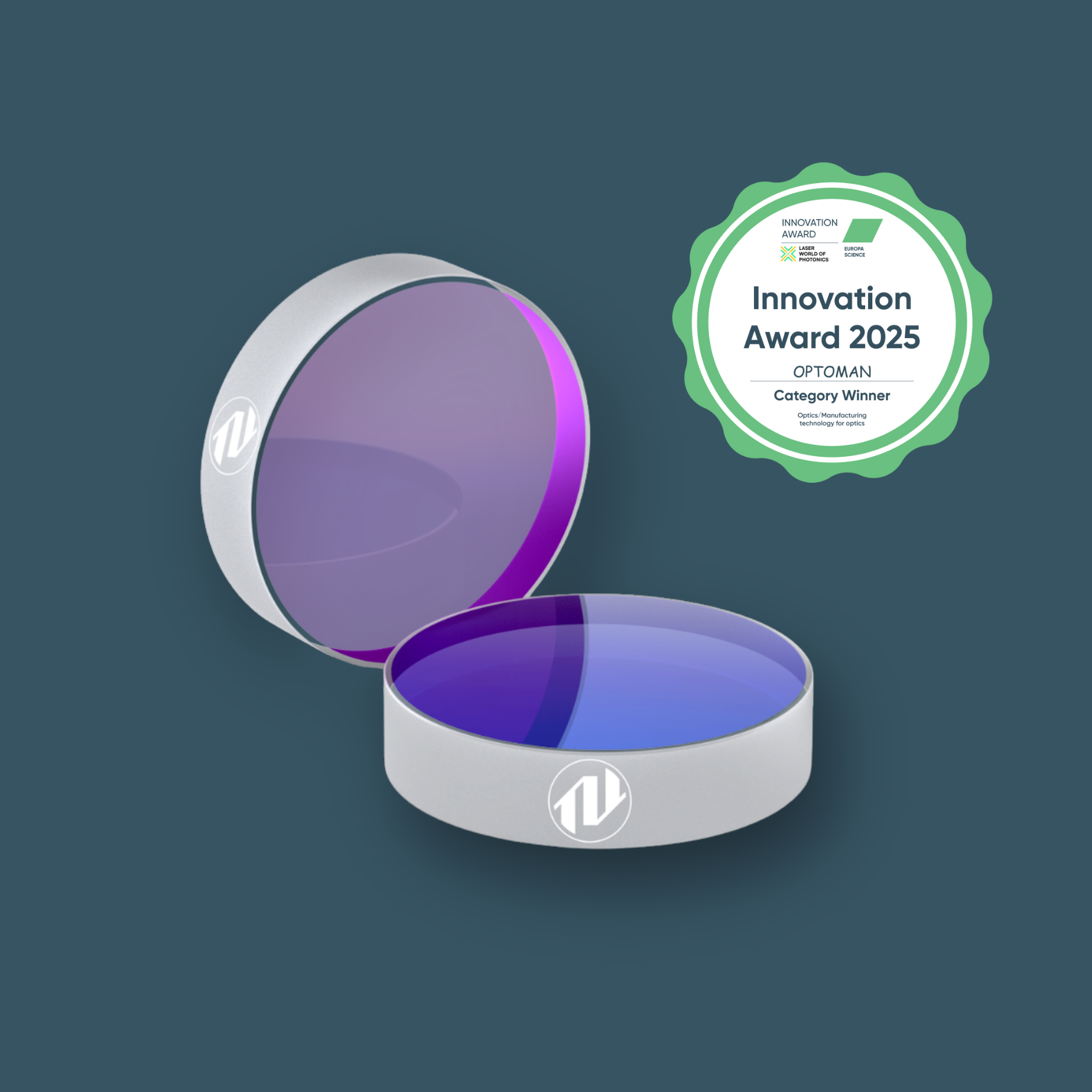

UV Low GDD mirrors
- No color-change effect for enhanced lifetime performance
- High LIDT coatings featuring high reflectivity up to 99.9%
- Highly customised and application optimised solutions
Coating technology | Ion Beam Sputtering (IBS) |
---|---|
Spectral range | From 193 nm |
Reflectivity | >99.9% |
Size | 3-420 mm |
Flatness | Up to <λ/20 |
Surface quality | Up to 10-5 S-D over CA (MIL-PRF-13830B) |
LIDT: | > 0.3 J/cm², 515 nm, 500 fs, 10 kHz, p-pol
> 0.45 J/cm², 515 nm, 500 fs, 10 kHz, s-pol |
GDD | < 20 fs² |
FAQ
How can IBS coated Ultrafast UV Mirrors benefit my Business?
IBS-coated ultrafast low GDD UV laser mirrors feature an extended lifespan that reduces the frequency of mirror replacements, lowering maintenance costs and minimising downtime in production environments. Moreover, IBS coatings provide high damage thresholds, making these mirrors highly durable under the intense conditions of high-power UV lasers. This is particularly important for industrial applications where long-term reliability is crucial.
For these applications OPTOMAN has developed a technology, applicable at 257-343 nm wavelengths for fs laser pulses, that enables Ultrafast UV laser optics to withstand over 10000 hours of laser irradiation. This technology directly translates into reduced downtime, longer overall lifespan, and consequently lower Total Cost of Ownership (TCO).
Note that a machine is useless if it’s not used properly. The most important component in this equation is the intermediary between the coating design and the IBS machine. That intermediary is the highly skilled and experienced coating engineers that OPTOMAN is proud of.
How can I be sure that these mirrors will fit my Business needs?
OPTOMAN digs deep into each application, providing highly customised and application-optimised solutions that will fit your business needs.
Together, we will be able to set the priorities that are most important for your application and needs, whether it is reaching fundamental limitations, proving the concept, or making a well-balanced industrial high runner. We keep an open discussion about main price drivers and help customers optimise BOM costs while maintaining the highest quality level.
Is it possible to test the optics and how scalable is the production?
Yes. Based on the customer’s presented business case, OPTOMAN, with its R&D-driven attitude and collaborative approach, can design, develop, and manufacture products for testing purposes and present a plan for serial production. Different-size IBS coating chambers are very handy in this case because small-scale production can be easily transferred to our giant IBS machine – Albert (the atom smasher), where we can coat large optics or 400-500 units of 1“ laser optics in a single coating run, ensuring high uniformity, meaning that all mirrors will work the same making your laser systems highly repeatable and reliable too.
Moreover, our in-stock optics marketplace, OPTOSHOP, features over 400 different laser optics made with love by OPTOMAN. These optics can be provided for testing directly from stock and delivered in 1-3 business days. After successful tests, OPTOMAN can present the most optimal production plan matching your business needs.
Does OPTOMAN provide optics or only coating service?
Both. 80% of total OPTOMAN revenue comes from complete products, while 20% is generated by providing coating services on customer-supplied substrates. OPTOMAN responsibly oversees the supplier network for reliable substrates and, if needed, can offer a completely European supply chain.
Does OPTOMAN have available substrates ready to coat?
Yes. OPTOMAN has a number of flat substrates, plano-concave and plano-convex lenses, and spherical mirror substrates in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.
Design Examples
Enhanced lifetime UV mirror for Yb:YAG III harmonic at 45° angle of incidence. Laser-Induced Damage Threshold (LIDT) graph shows no evidence of color change damage.
Coating specifications:
HRs>99.6% @ 337-349 nm, AOI=45°
Wide angle UV mirror optimised for Yb:YAG III harmonic.
Coating specifications:
HR>99.9% @ 343 nm. AOI = 0 - 10°
Deep UV mirror optimised for Yb:YAG IV harmonic.
Coating specifications:
HRs>99.5% & HRp>99.2% @ 257 nm, AOI=45° (low GDD)
