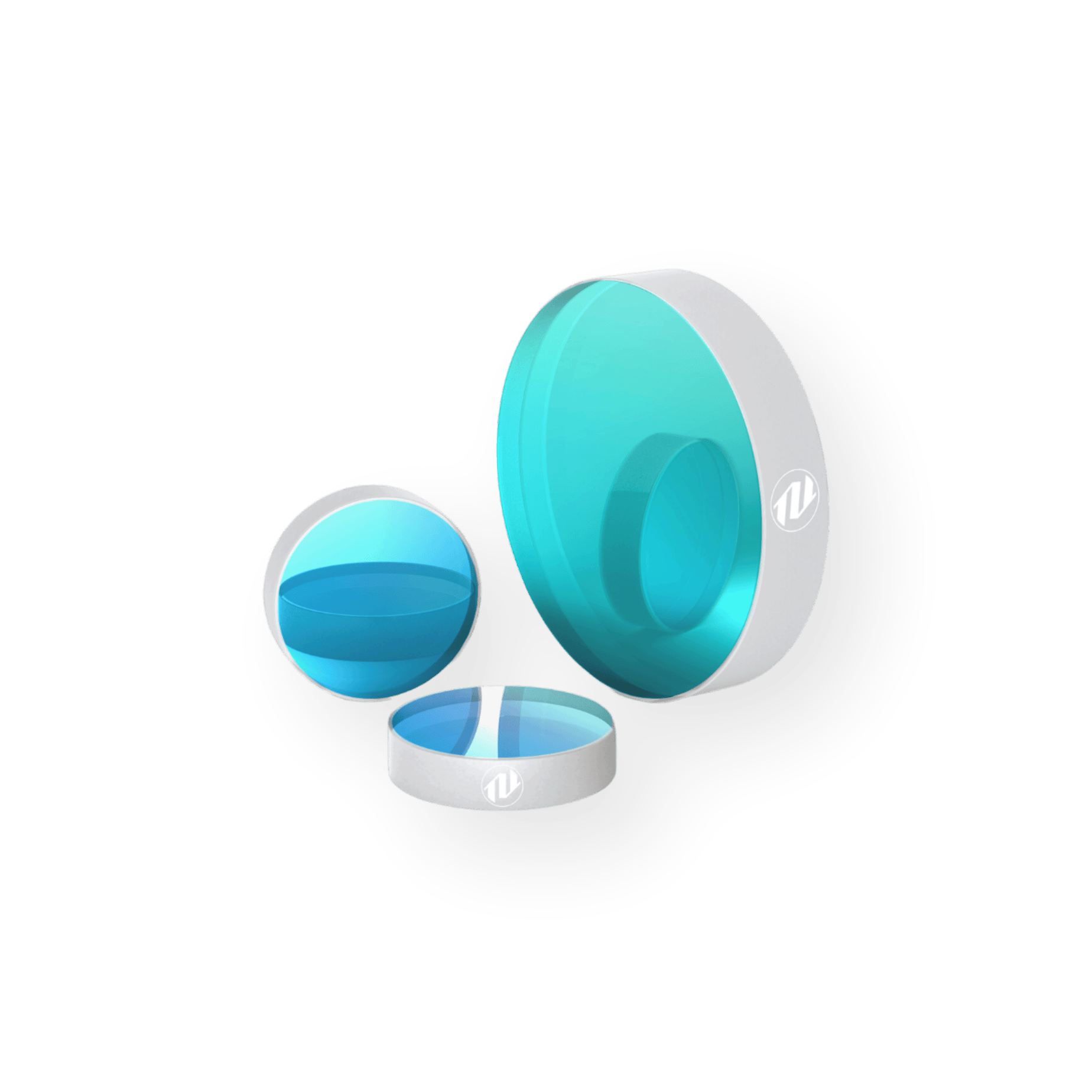

Partial reflectors (output couplers)

IBS-coated optics that transmit a precise, controlled fraction of light while reflecting the rest, delivering stable performance as intracavity elements or partial-reflection mirrors in external beam paths. Low absorption and predictable reflectance-to-transmittance ratios let you manage intracavity power and fine-tune output energy, while high LIDT keeps performance consistent over a long operational lifetime – customized to your wavelength and split ratio.

Read how our IBS coating process works

Capabilities

Coating technology Ion Beam Sputtering (IBS)
Spectral range 193 – 5000 nm
Substrate diameter 3 – 500 mm
Surface flatness Up to <λ/20
Surface quality Up to 10-5 S-D over CA (MIL-PRF-13830B)
GDD <20 fs2

Company-wide capability spans 200–2200 nm

Measured performance

Reflectance and GDD are measured in our own metrology lab in Vilnius. LIDT and absorption are measured independently at Lidaris, an accredited laser-damage testing lab. Every graph is labeled as measured or theoretical. Theoretical curves are calculated from the coating design and show the expected performance. You can download the raw data below.

Filters

Design example:

Graph:

Group delay dispersion

PRs=99.5%±0.2% @ 1020-1040 nm, AOI=45° (PR95)

Partial Reflector @ 1020-1040 nm — GDD

Reflectivity

PRs=99.5%±0.2% @ 1020-1040 nm, AOI=45° (PR95)

Partial Reflector @ 1020-1040 nm — Reflectivity

In-stock at OPTOSHOP

1-3 days delivery from stock, 400+ products available

PP-UVFS-12.7-6.35-PR95-AR856

PARTIAL REFLECTORS

PP-UVFS-12.7-6.35-PR95-AR856

Reflectivity 99.5 ± 0.2%
Wavelength 1020–1040 nm
Diameter Ø 12.7 mm
PP-UVFS-12.7-6.35-PR216-AR419

PARTIAL REFLECTORS

PP-UVFS-12.7-6.35-PR216-AR419

Reflectivity 50 ± 2%
Wavelength 1064 nm
Diameter Ø 12.7 mm
PLW-DEG0.5-UVFS-12.7-5.0-PR182-AR763

PARTIAL REFLECTORS

PLW-DEG0.5-UVFS-12.7-5.0-PR182-AR763

Reflectivity 93 ± 1%
Wavelength 1015–1055 nm
Diameter Ø 12.7 mm
PP-UVFS-25.4-6.35-PR194

PARTIAL REFLECTORS

PP-UVFS-25.4-6.35-PR194

Reflectivity 95 ± 2%
Wavelength 532/1064 nm
Diameter Ø 25.4 mm
PP-UVFS-25.4-6.35-PRM77

PARTIAL REFLECTORS

PP-UVFS-25.4-6.35-PRM77

Reflectivity 80 ± 2%
Wavelength 532 nm
Diameter Ø 25.4 mm

Used in published research

Available lenses and substrates

Save

6 weeks

of lead time

Save

3 times

end-product cost

Lenses

OPTOMAN has a number of plano-concave and plano-convex lenses in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.

Plano substrates

OPTOMAN has a number of 1/2”, 1”, 2” and 3” plano substrates in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.

Let’s get your quotation started.

Our AI assistant will ask the same technical questions our engineers would normally ask by email, so we can understand your requirements from the start and prepare your quotation faster.

Prefer to fill it in yourself?
Send us your requirements directly and our team will get back to you.
  1. 1 Specifications
  2. 2 Laser Parameters
  3. 3 Contact

    Dimensions
    Incorect value
    Incorect value
    Coating type
    Incorect value
    Incorect value
    Incorect value

    Incorect value

    Incorect value

    Incorect value

    Incorect value

    Incorect value

    Incorect value

    Incorect value
    Incorect value

    Incorect value
    Incorect value
    Incorect value
    Incorect value
    0/2500
    Incorect value

    I agree to the Terms of Use and Privacy Policy

    Thank you
    for your request

    We will contact you as soon as possible

    OPTOMAN

    FAQ

    How can IBS-coated partial reflectors benefit my Business?

    IBS-coated partial reflectors reflect a precisely defined portion of the laser beam and transmit the rest, with a partial reflection value customized to your system. Used as output couplers, they transmit a controlled portion of the beam while reflecting the rest back into the resonator. This balance keeps laser operation stable and output power consistent. Partial reflectors are available across the spectral range from 193 nm to 5000 nm, with low GDD (<20 fs²)

    For ultrafast laser systems. Manufactured with Ion-Beam Sputtering (IBS) technology, OPTOMAN partial reflectors give precise control over spectral performance, low absorption and high Laser-Induced Damage Thresholds (LIDT), so they are reliable in high-power laser applications. Extended operational lifetimes mean fewer replacements and less downtime, which lowers the Total Cost of Ownership (TCO).

    At OPTOMAN, our expert coating engineers fine-tune each partial reflector for your specific needs, giving you excellent spectral performance and long-lasting solutions for the most demanding laser systems.

    Is it possible to test the optics and how scalable is the production?

    OPTOMAN digs deep into each application, providing highly customized and application-optimized solutions that will fit your business needs.

    Together, we will be able to set the priorities that are most important for your application and needs, whether it is reaching fundamental limitations, proving the concept, or making a well-balanced industrial high runner. We keep an open discussion about the main price drivers and help customers optimize BOM costs while maintaining the highest quality level.

    Is it possible to test the optics and how scalable is the production?

    Yes. Based on the customer’s presented business case, OPTOMAN, with its R&D-driven attitude and collaborative approach, can design, develop, and manufacture products for testing purposes and present a plan for serial production. Different-size IBS coating chambers are very handy in this case because small-scale production can be easily transferred to our giant IBS machine – Albert (the atom smasher), where we can coat large optics or 400-500 units of 1“ laser optics in a single coating run, ensuring high uniformity, meaning that all mirrors will work the same making your laser systems highly repeatable and reliable too.

    Moreover, our in-stock optics marketplace, OPTOSHOP, features over 400 different laser optics made with love by OPTOMAN. These optics can be provided for testing directly from stock and delivered in 1-3 business days. After successful tests, OPTOMAN can present the most optimal production plan matching your business needs.

    Does OPTOMAN provide optics or only coating service?

    Both. 80% of total OPTOMAN revenue comes from complete products, while 20% is generated by providing coating services on customer-supplied substrates. OPTOMAN responsibly oversees the supplier network for reliable substrates and, if needed, can offer a completely European supply chain.

    Does OPTOMAN have available substrates ready to coat?

    Yes. OPTOMAN has a number of flat substrates, plano-concave and plano-convex lenses, and spherical mirror substrates in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.
