Optical Assemblies
IBS Coating capabilities
Low loss (R>99.995% or R<0.01%)
High contrast
polarizing (Tp/Ts ratio 10,000:1)
High LIDT (>1J/cm² @ 1030nm, 500fs)
IBS Coating capabilities
Low absorption (<1ppm)
Spectral range (193nm – 5000nm)

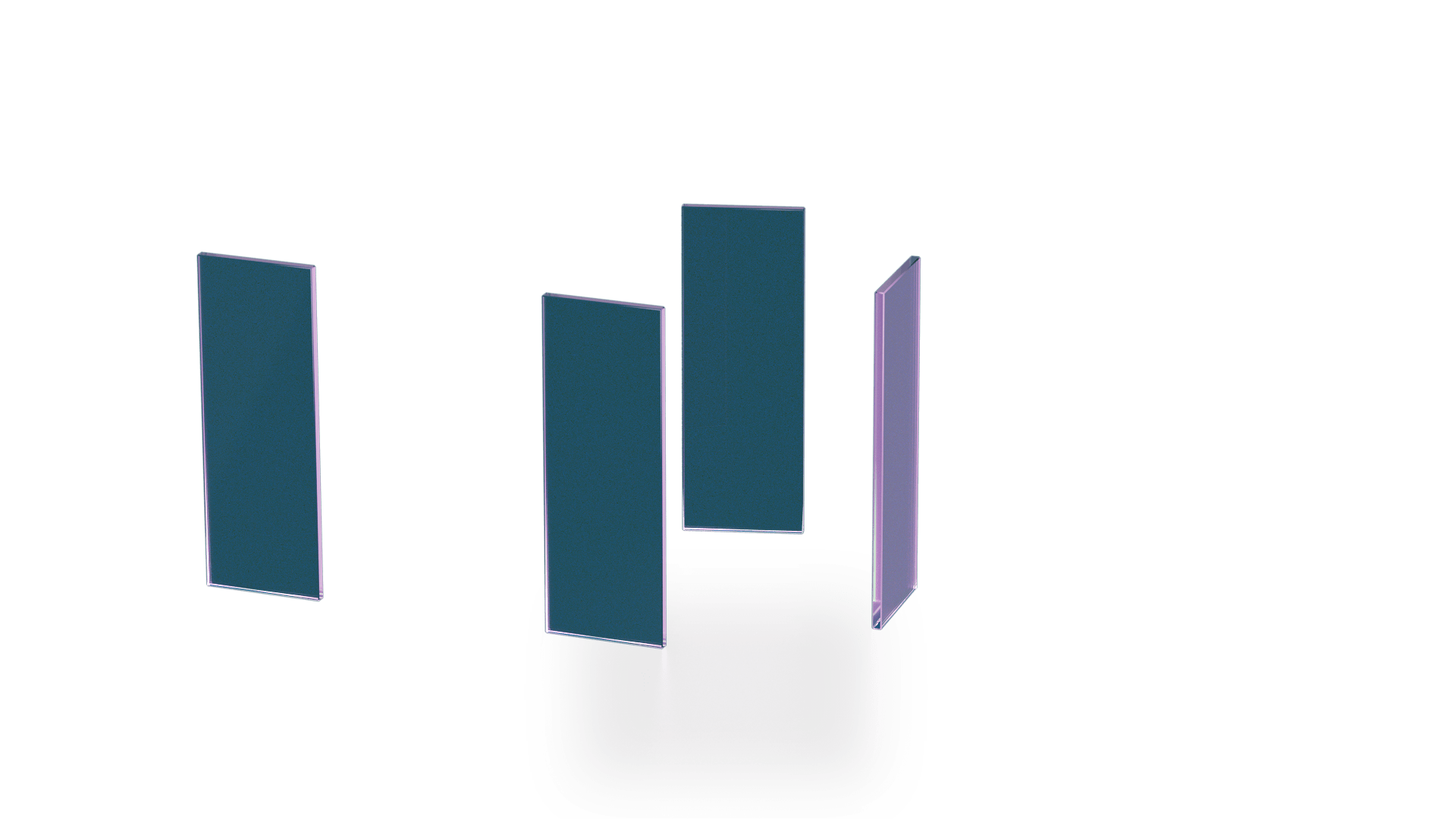

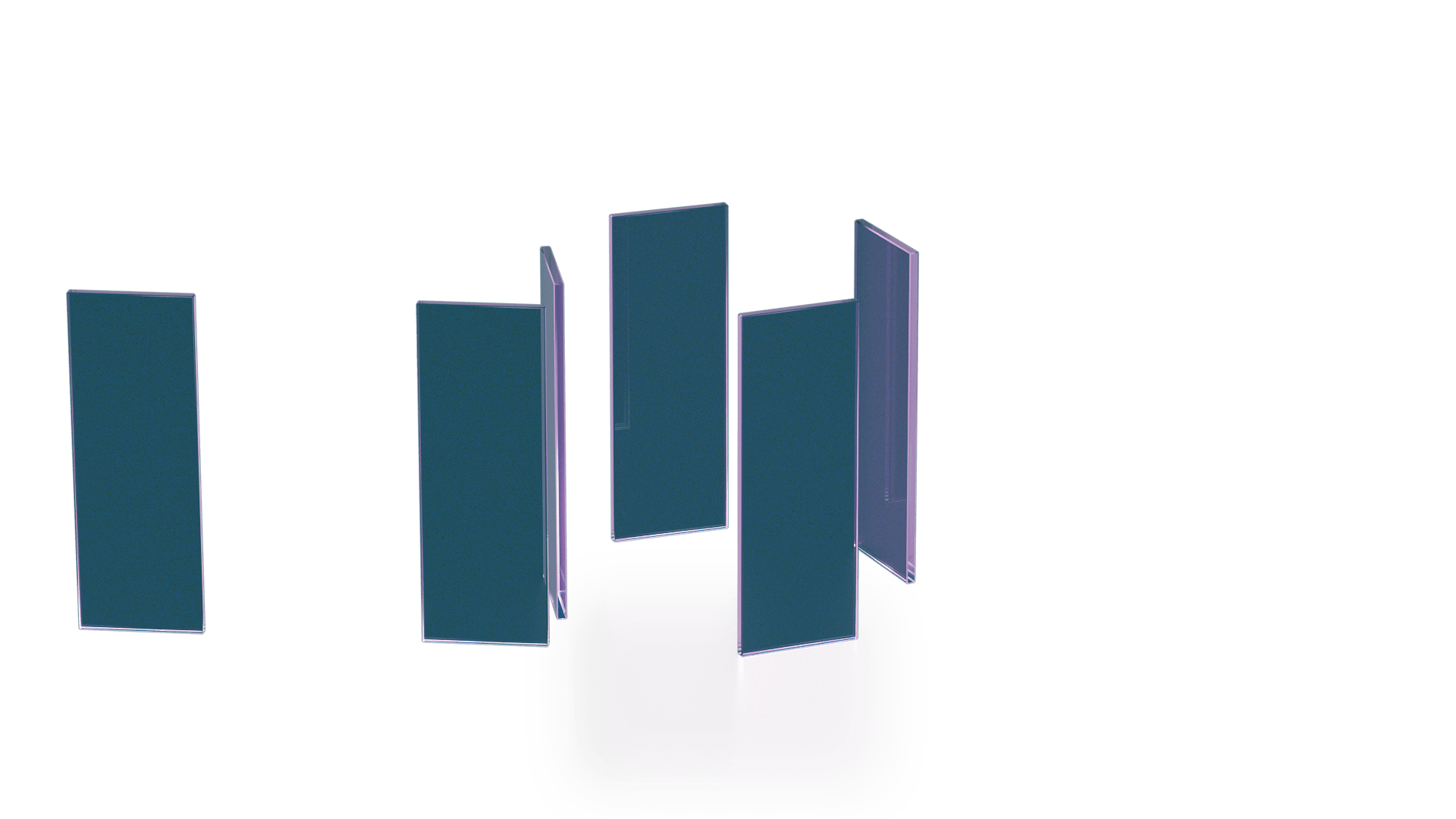

Glass to glass
Leading to exceptional
assembly spectral
performance
Low-outgassing glues
Final assembly tolerances reaching
as low as 0.01 mm
No glue residue or other contaminants
on any optical surfaces
What we can do:
Retroreflectors

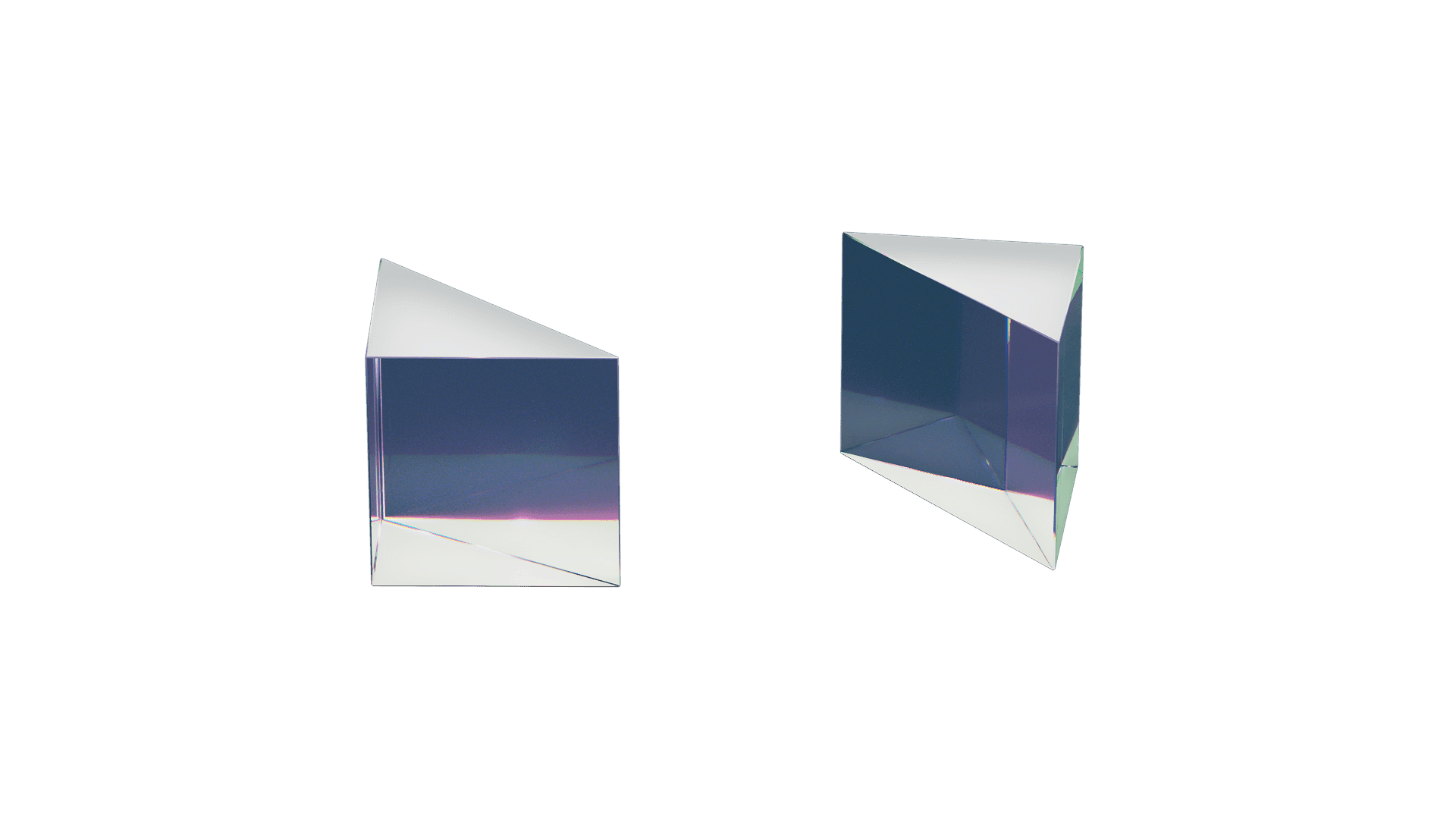

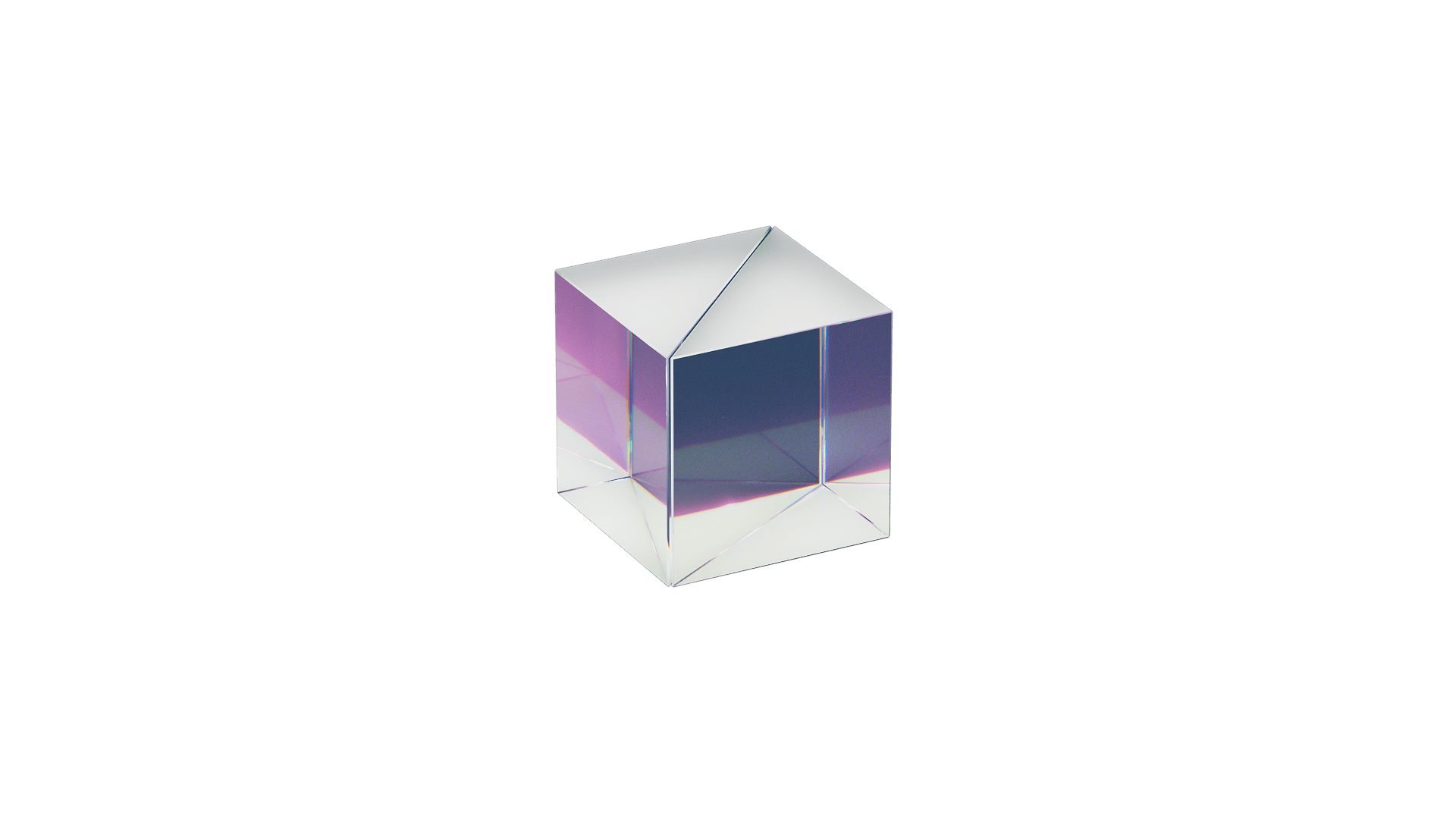

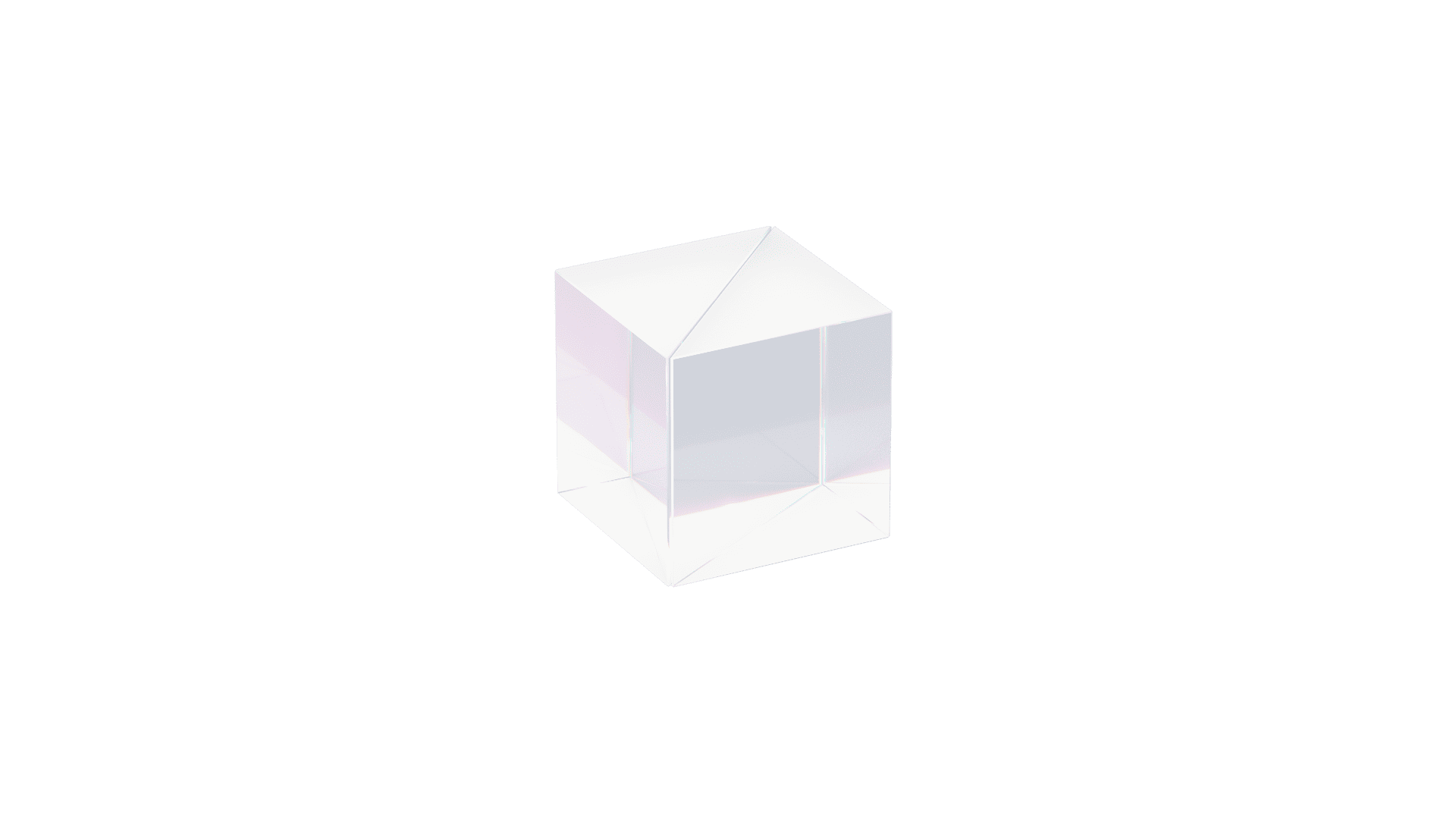

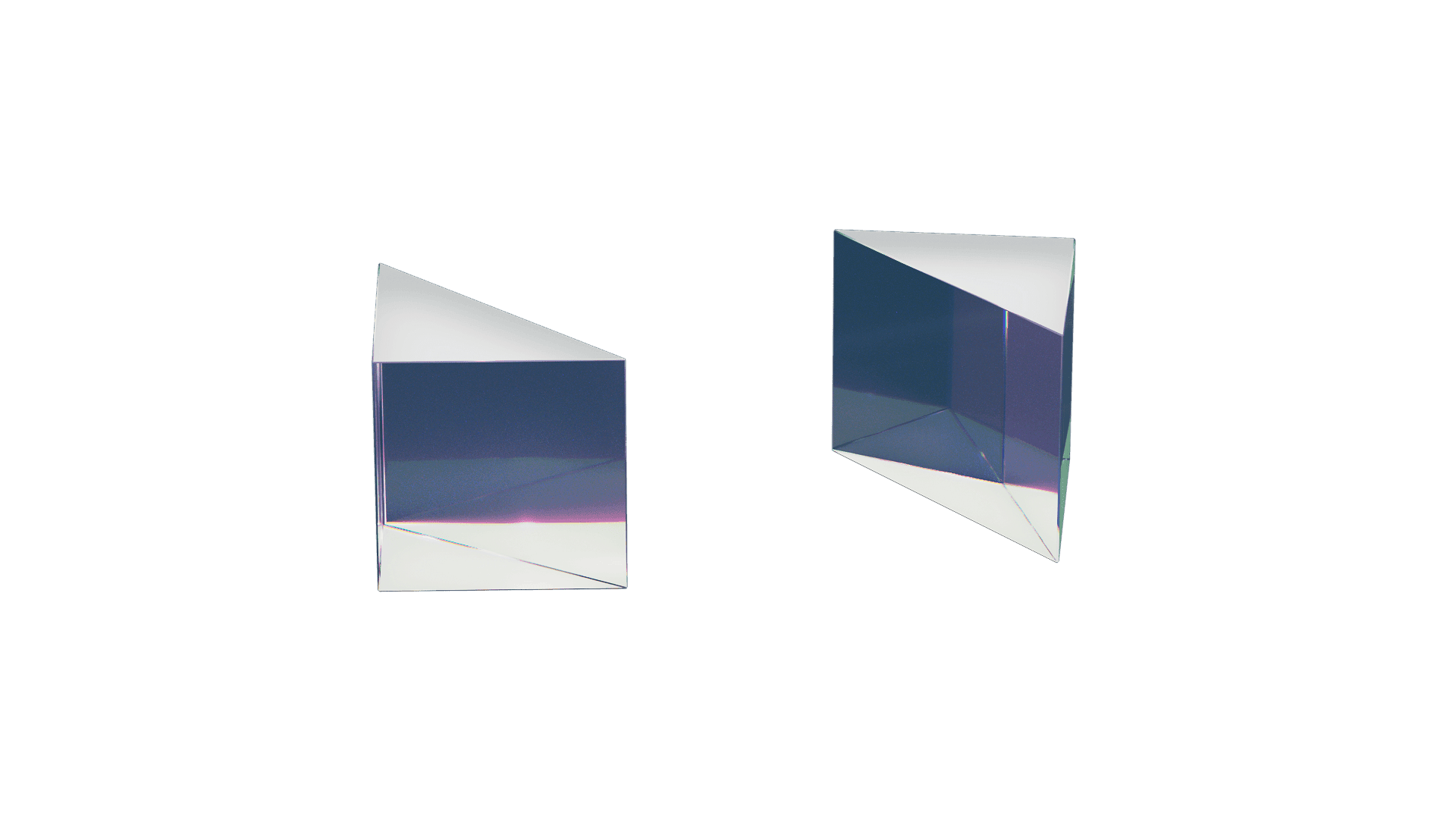

Beam splitters
High level of customisation
and scalability
Coated optics size:
<Ø400mm or 400x400mm

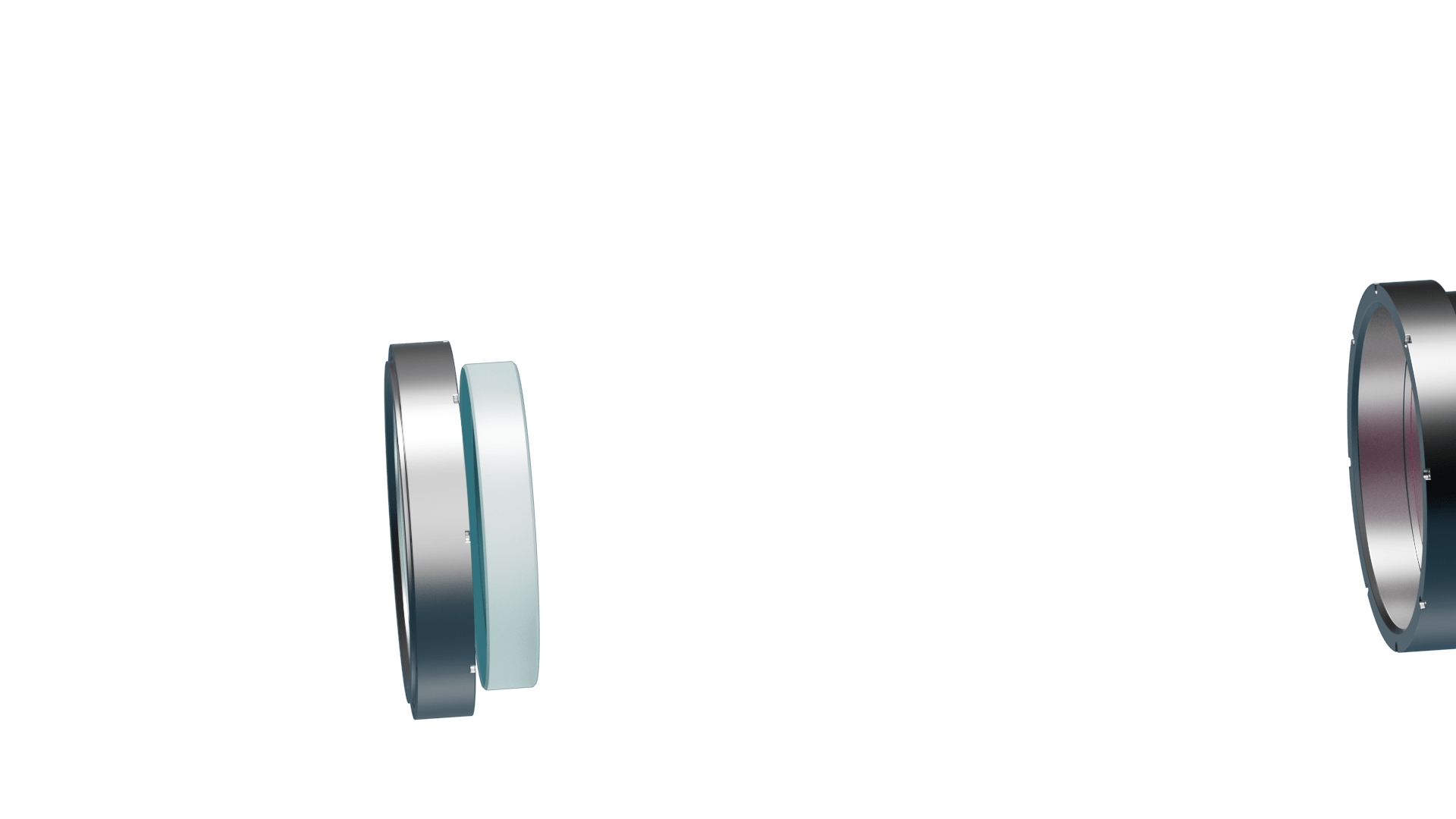

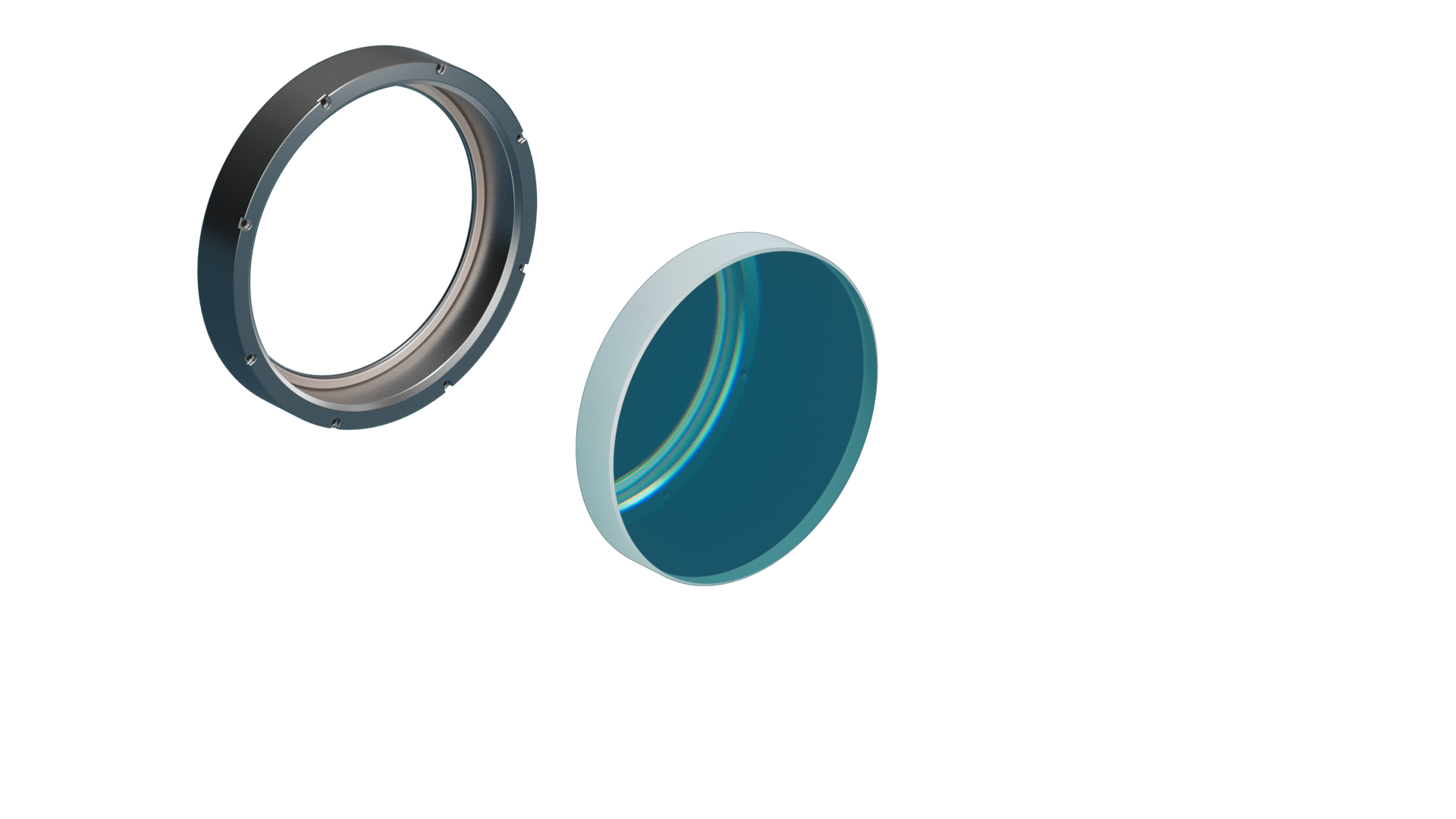

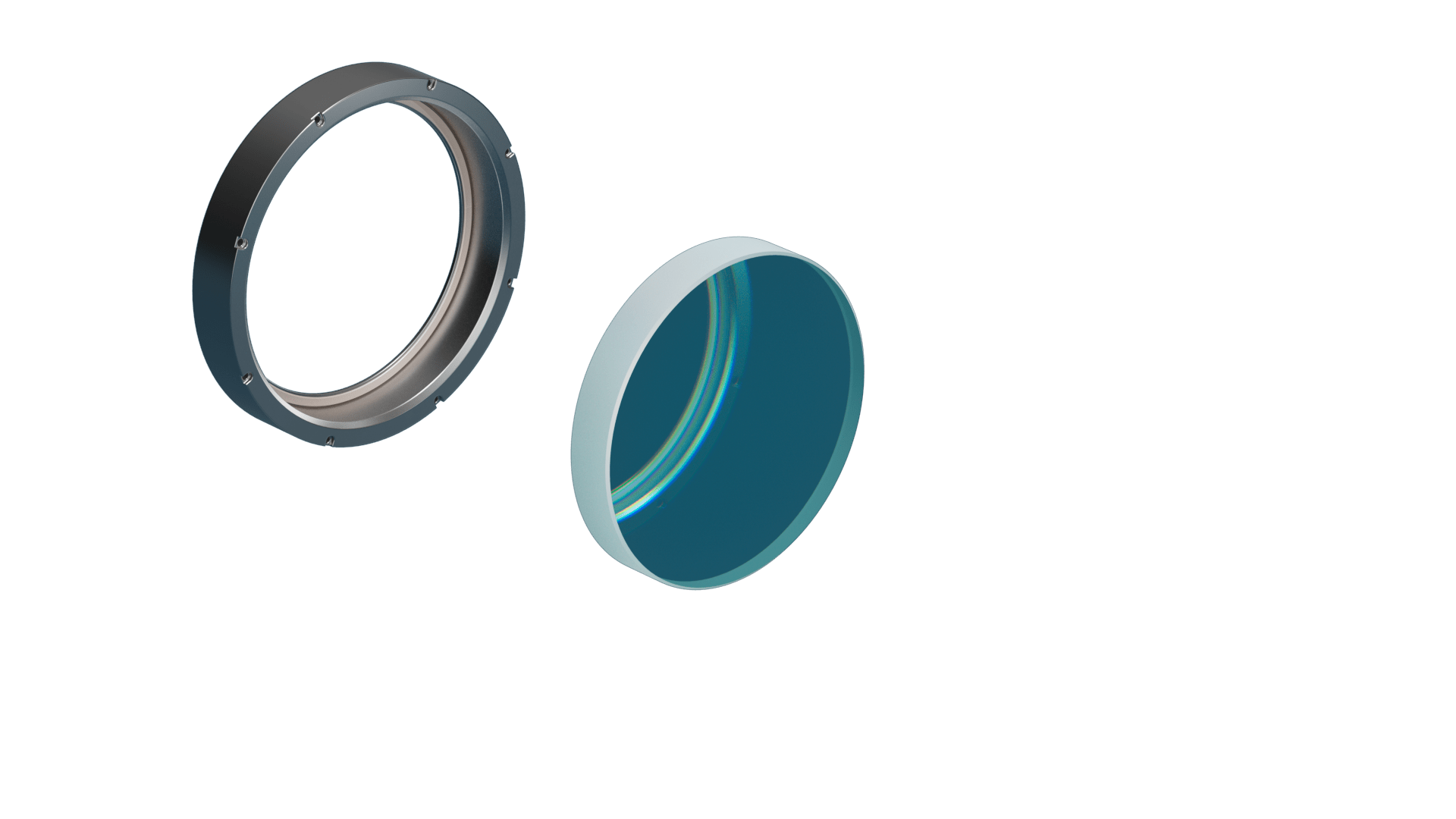

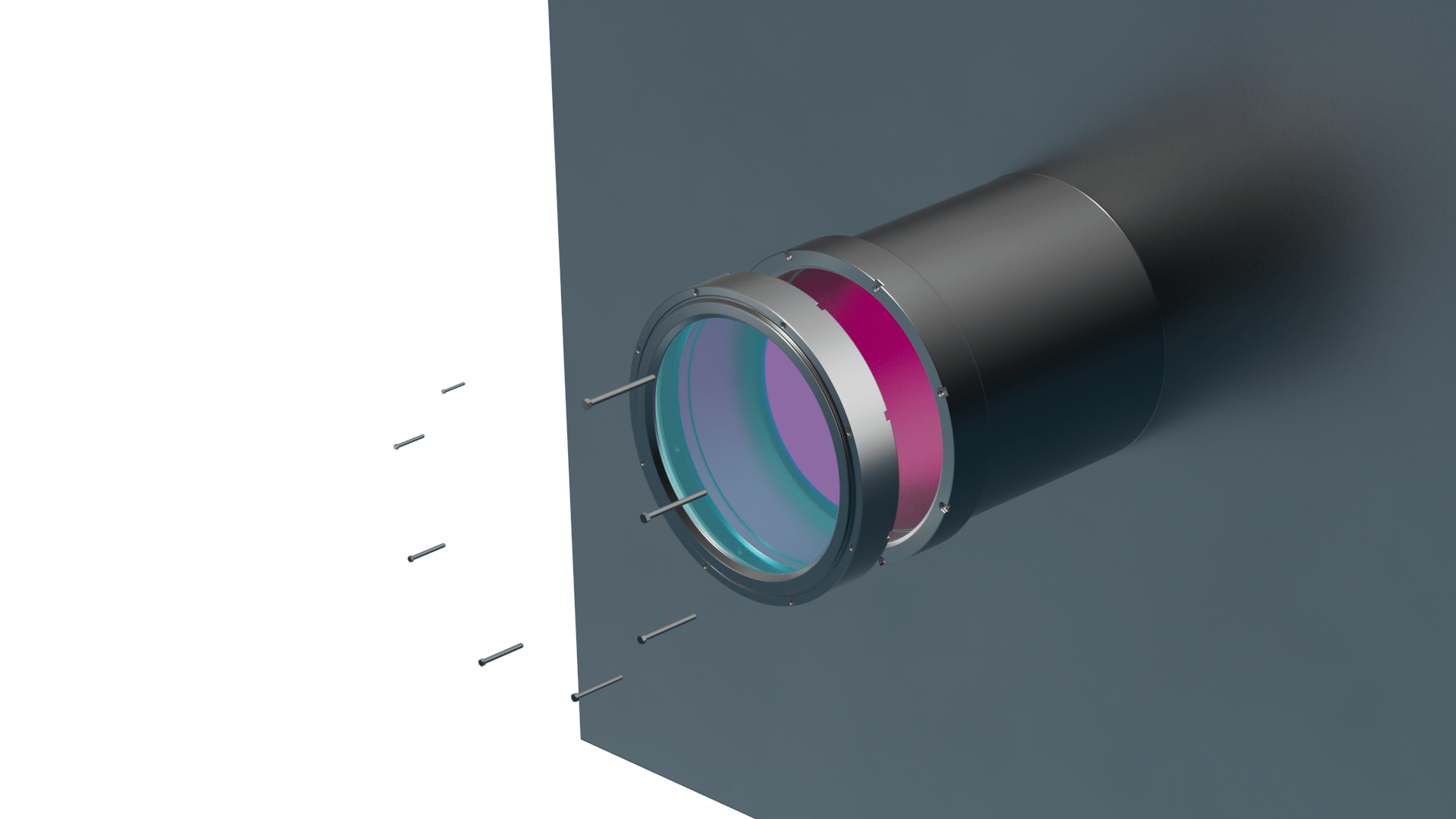

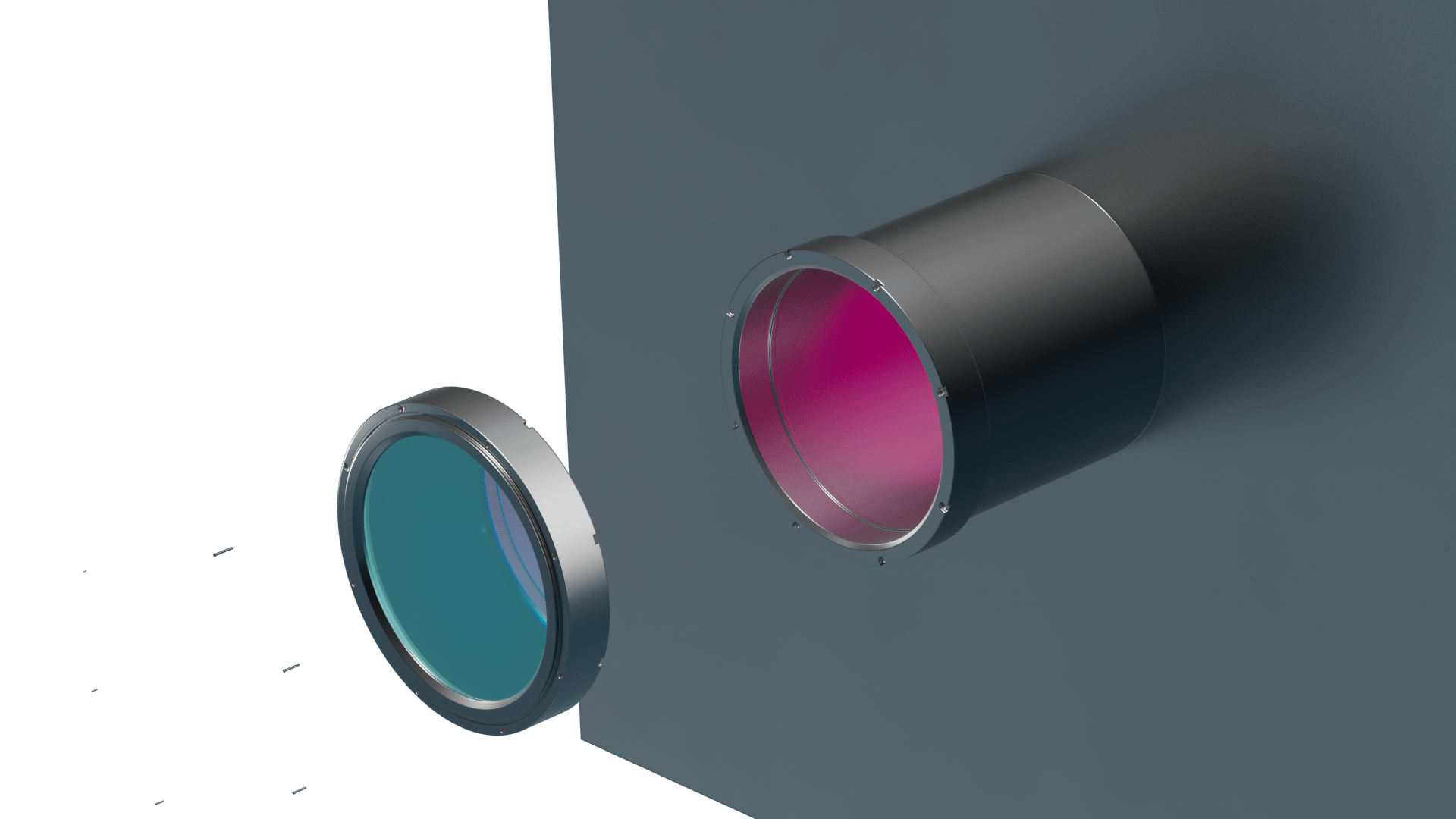

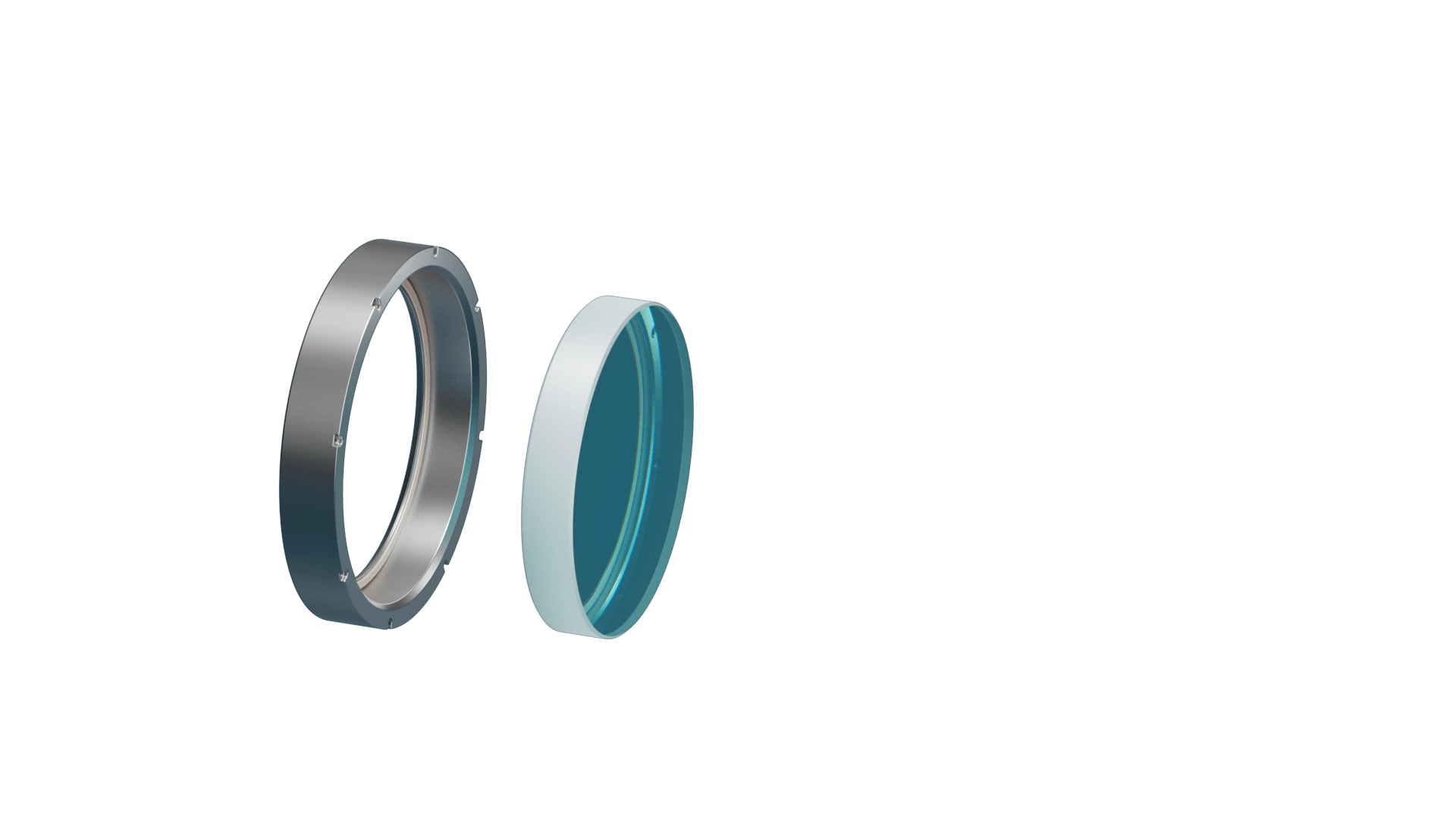

Glass to metal
Coated optics can be assembled in
conjunction with copper,
aluminium, and plastic parts
What we can do:

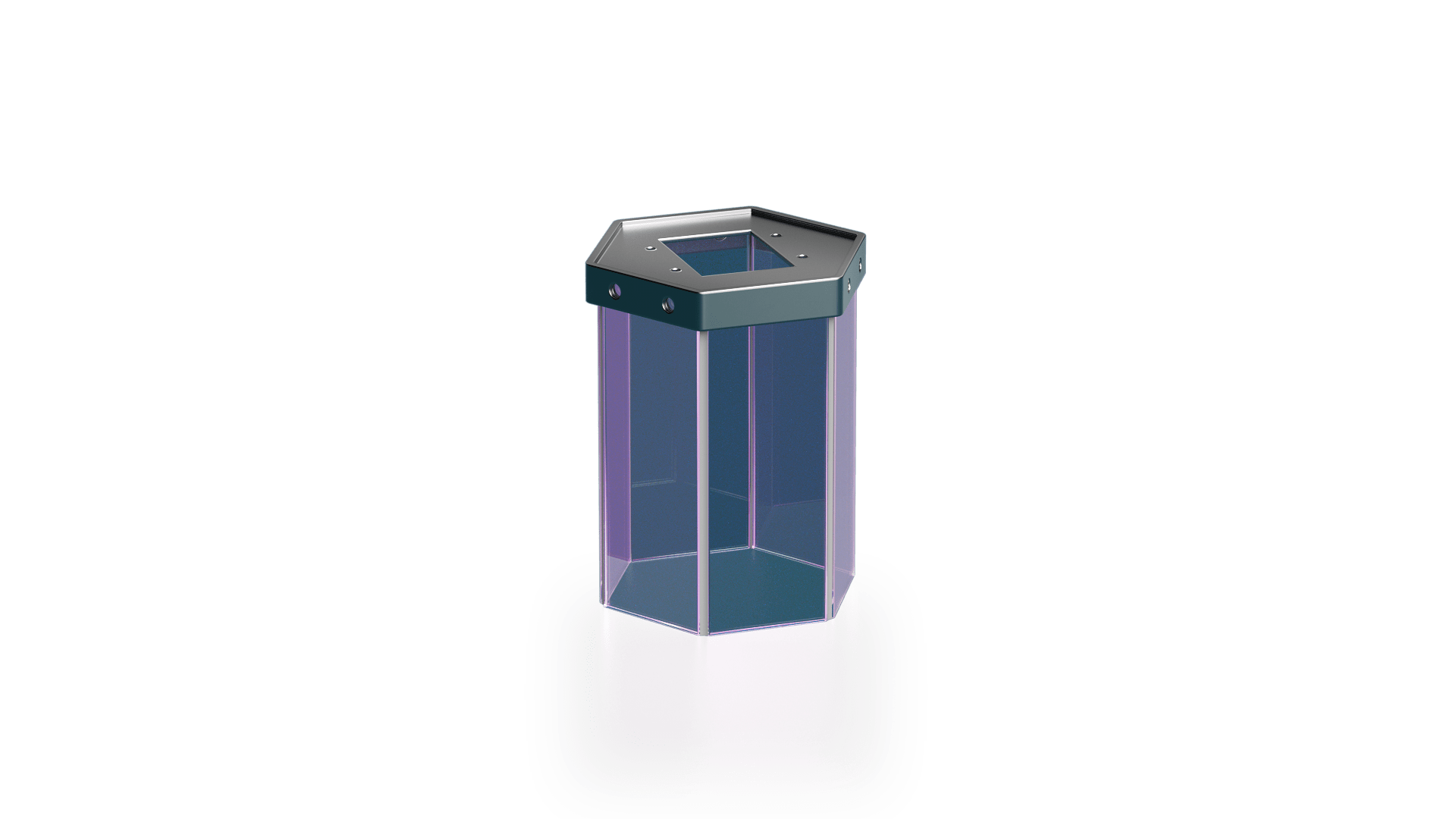

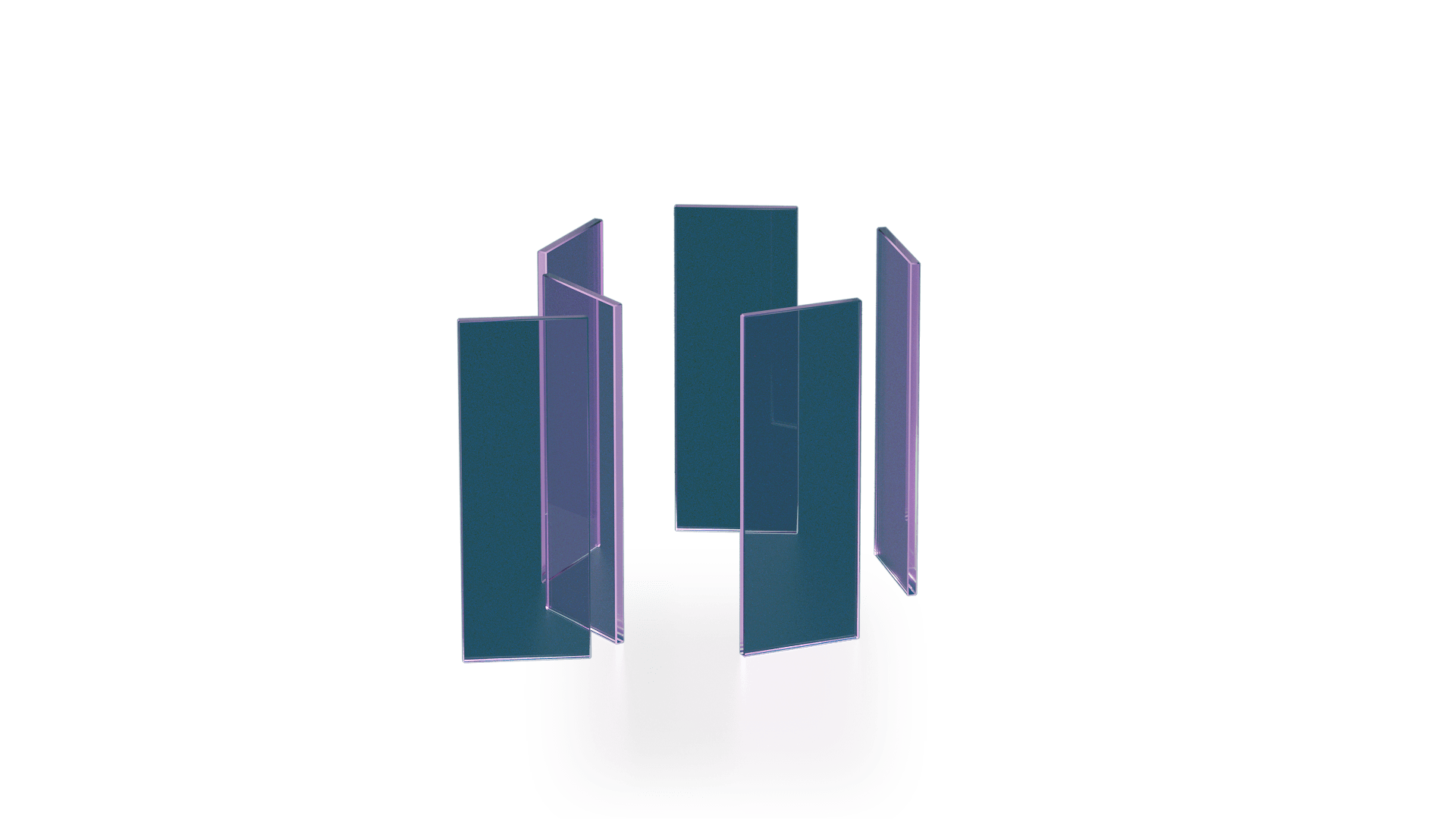

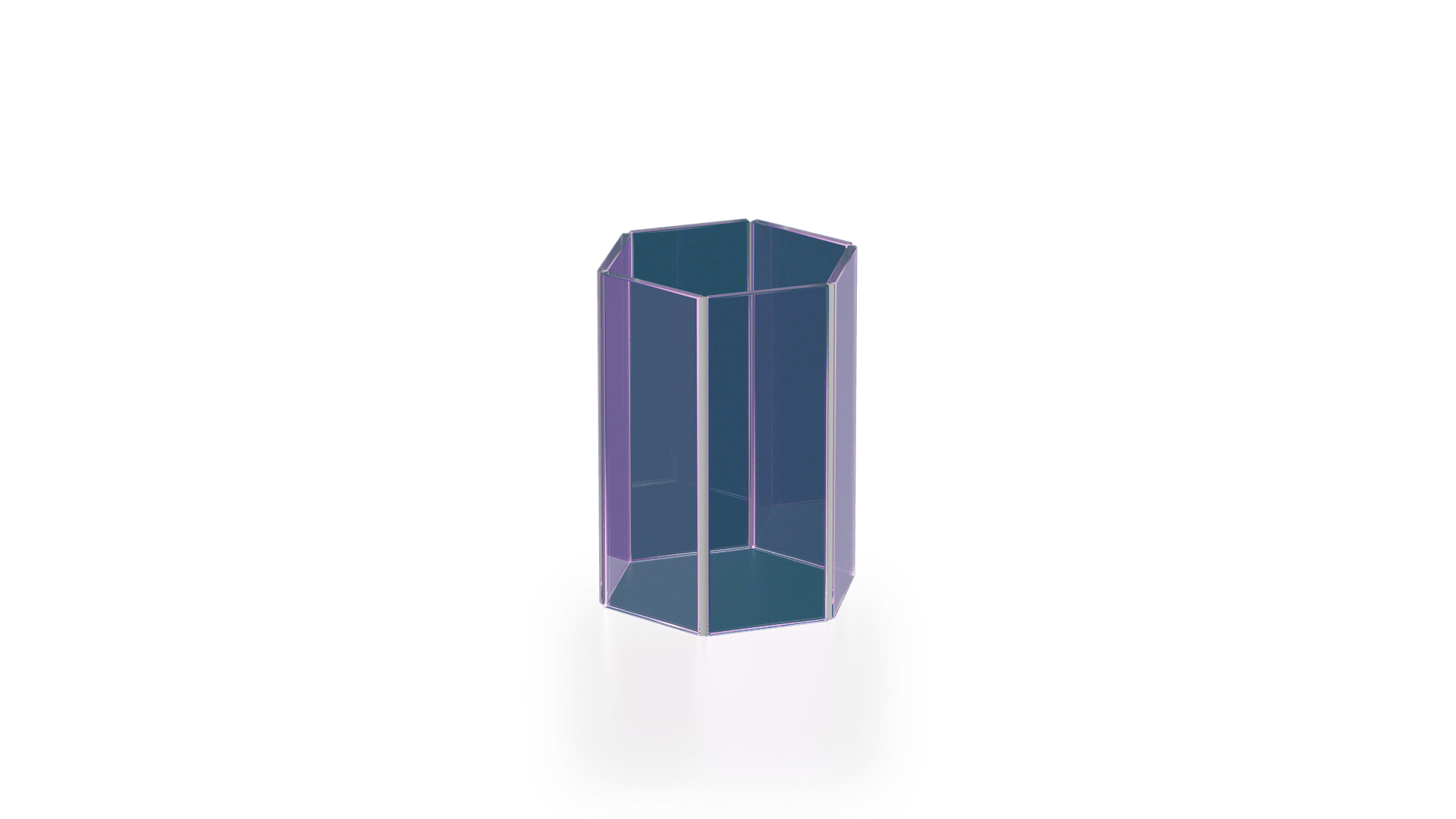

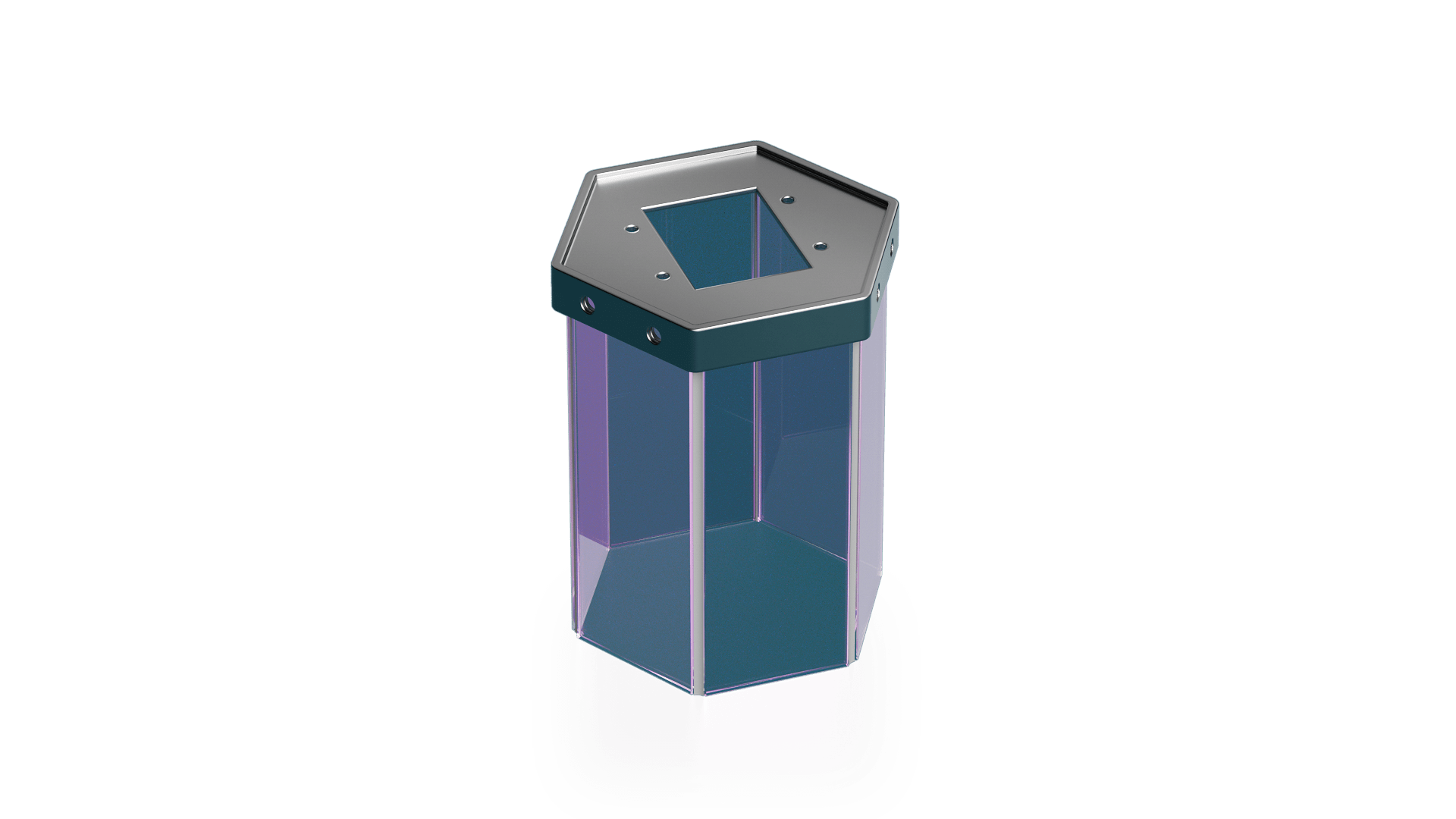

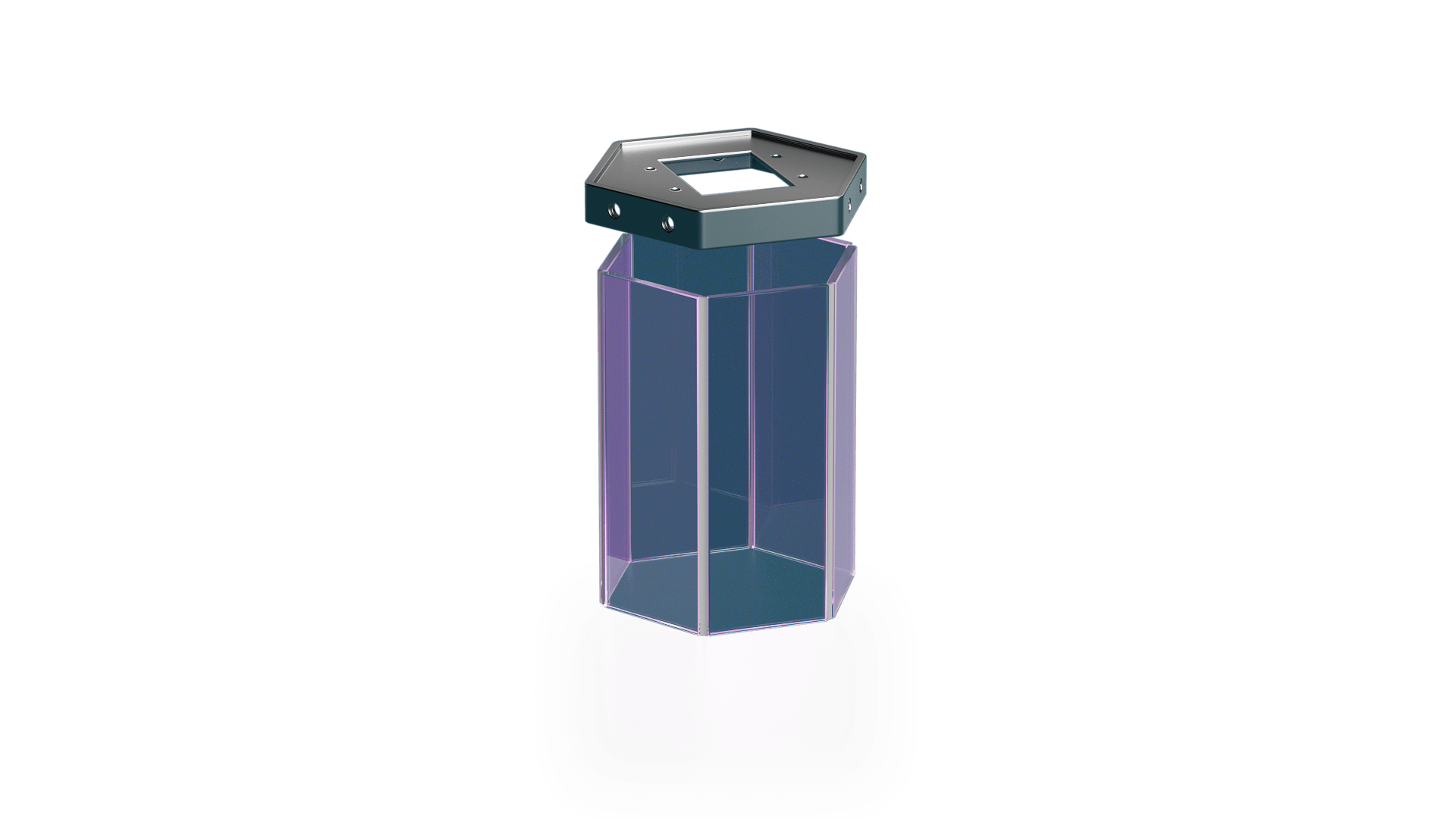

Light pipes
Collimators

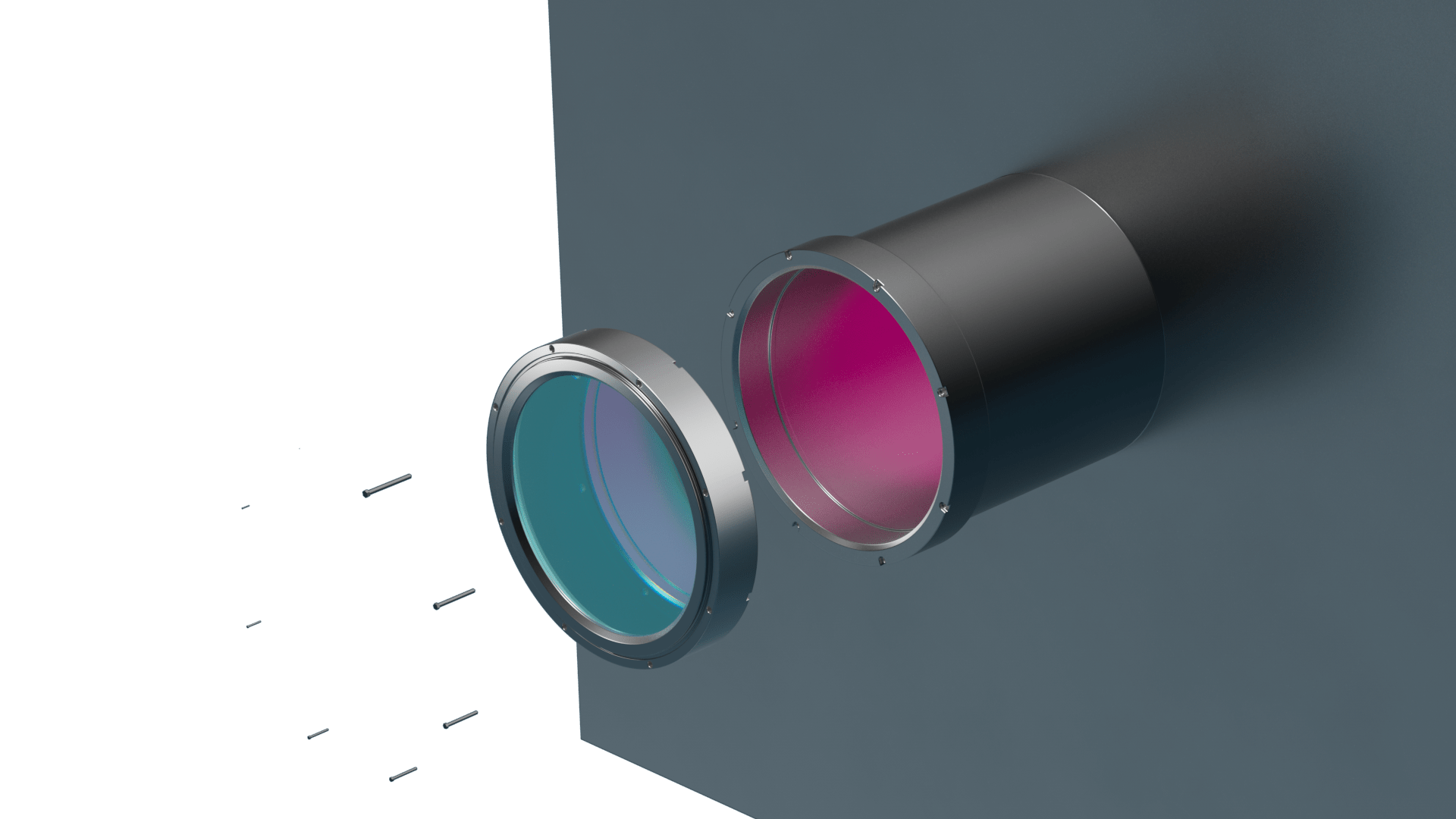

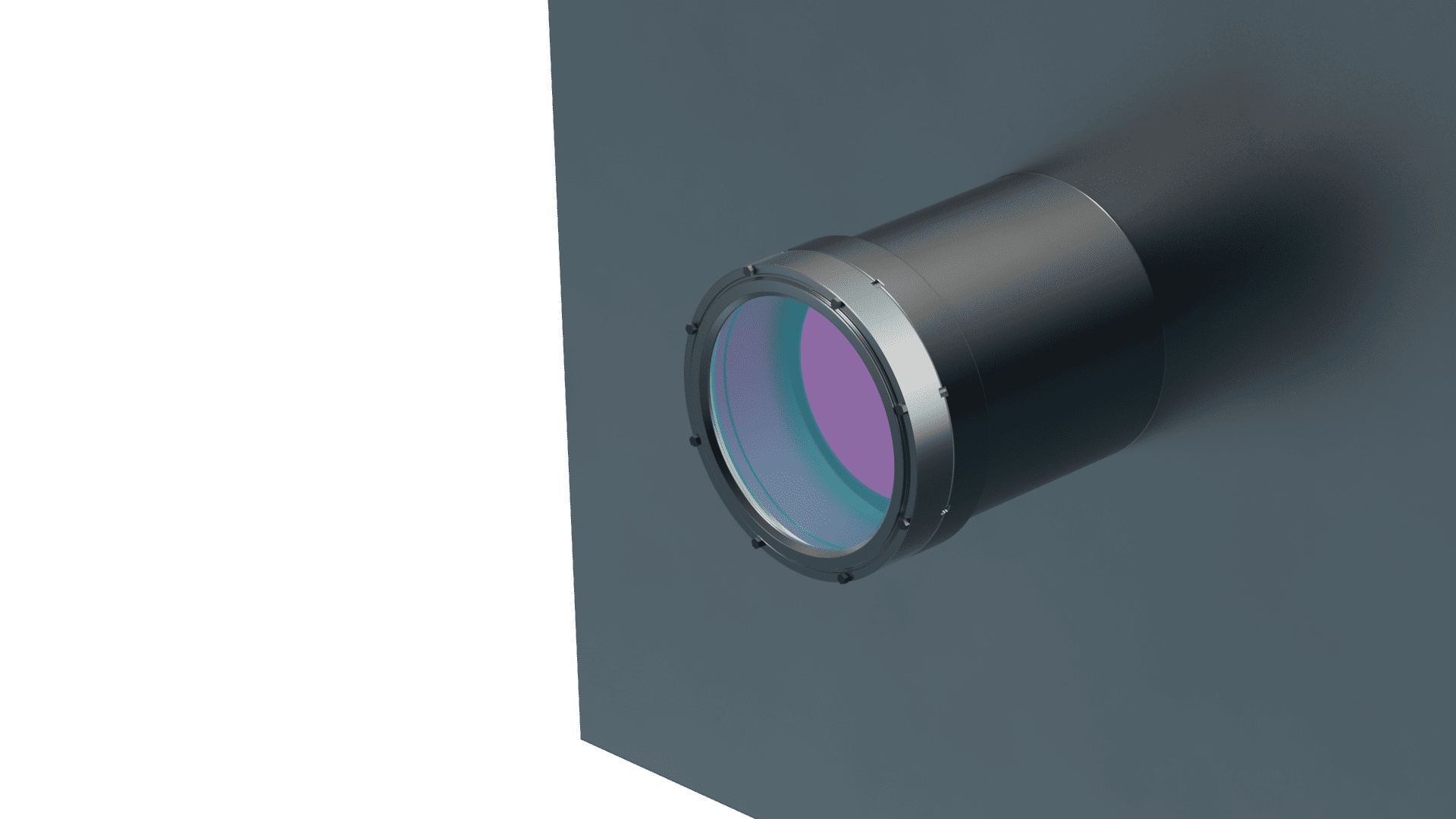

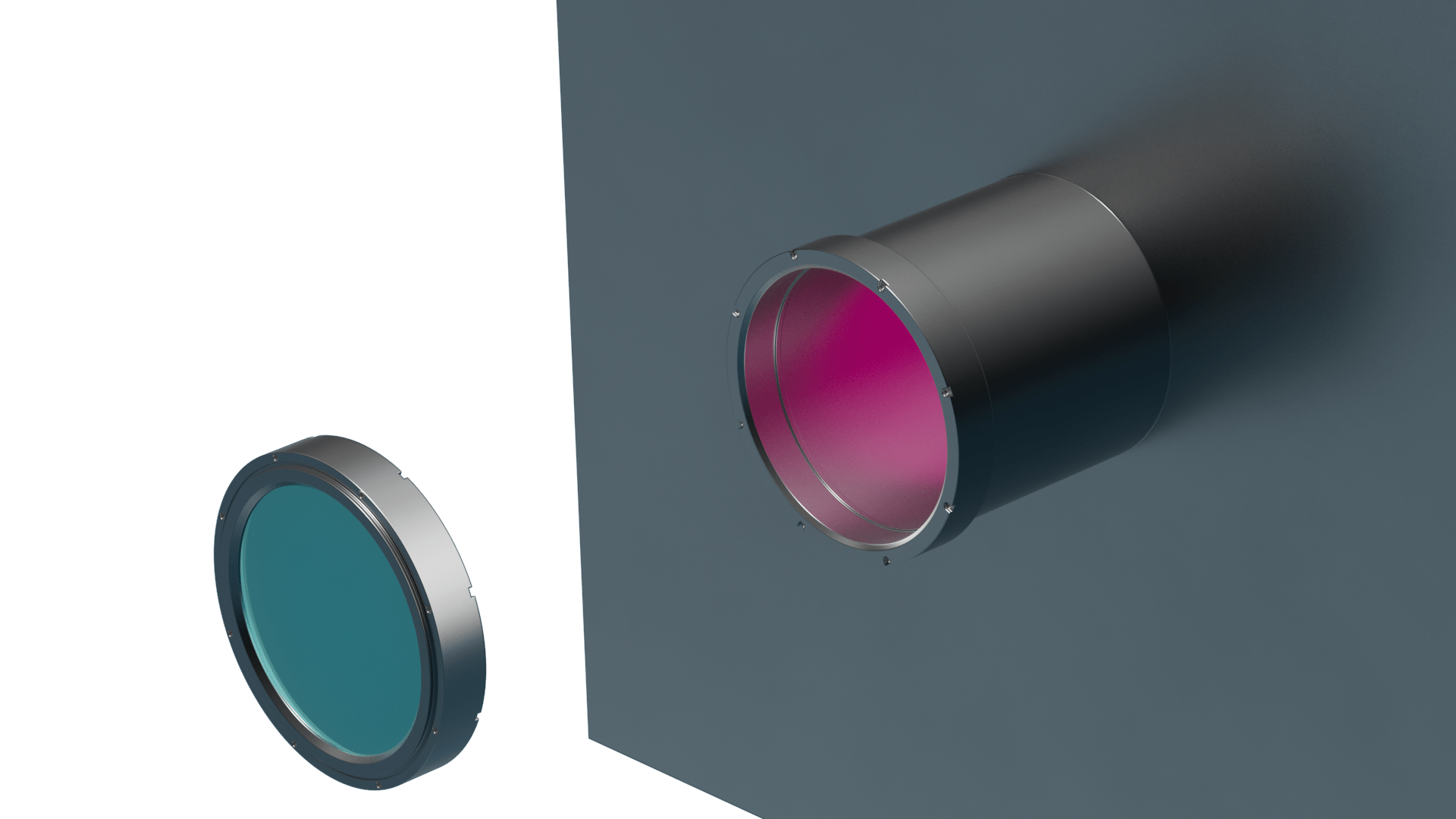

Lens assemblies
Capabilities
Coated optics size:
<Ø400mm or 400x400mm
What we can do:
Process chamber windows
OPTOMAN is up for a challenge to develop custom IBS coated optical assembly optimised for your application.
Metrology
Сapabilities:
- Surface quality inspection according to ISO 10110-7 standard
- Transmittance and Reflectance measurement
- Beam deviation measurements
- Flatness λ/20 (PV – Peak to Valley); < 0.2 nm (RMS); Transmitted WFD measurement
- Coating abrasion testing
Examples of optical assemblies
Light pipes
Process chamber windows
Lens assemblies
Retroreflectors
Beam splitters
Collimators
Applications
Medical laser systems
Ophthalmic microscopy systems
Articulated arms
Laser processing systems
Laser manufacturing
Fill out a custom request
Relax and build your laser. OPTOMAN has your back.
